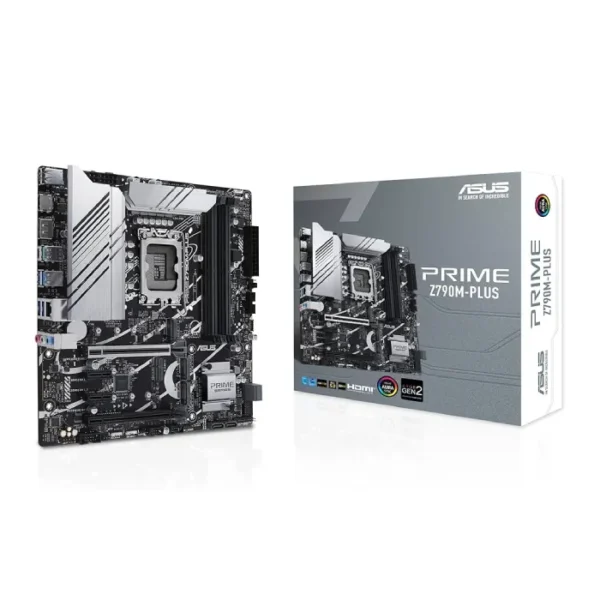

ASUS Prime Z790M-Plus LGA 1700 PCIe 5.0 Motherboard

📌 Product Specifications – ASUS PRIME Z790M-PLUS

🔹 Model

• ASUS PRIME Z790M-PLUS

🔹 CPU Support

• Intel® Socket LGA1700

• Supports:

  • Intel® Core™ 14th / 13th / 12th Gen

  • Pentium® Gold

  • Celeron®

• Supports Intel® Turbo Boost 2.0

• Supports Intel® Turbo Boost Max 3.0 (CPU dependent)

🔹 Chipset

• Intel® Z790 Chipset

🔹 Memory

• 4 × DIMM Slots

• Max Capacity: 192GB DDR5

• Supported Speeds:

  • 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC)

  • 6400 / 6200(OC) / 6000(OC) / 5800(OC)

  • 5600 / 5400 / 5200 / 5000 / 4800

• Dual Channel Architecture

• Intel® XMP Support

• ASUS OptiMem II

• Non-ECC, Unbuffered DDR5 (On-Die ECC supported)

🔹 Graphics

• 1 × DisplayPort (Max 4K @ 60Hz – DP 1.4)

• 1 × HDMI™ (Max 4K @ 60Hz – HDMI 2.1)

• Graphics output depends on CPU

🔹 Expansion Slots

• 1 × PCIe 5.0 x16

• 1 × PCIe 4.0 x16 (x4 mode)

• 2 × PCIe 4.0 x1

🔹 Storage

• 3 × M.2 Slots

  • M.2_1: PCIe 4.0 x4 (2242/2260/2280)

  • M.2_2: PCIe 4.0 x4 (2260/2280)

  • M.2_3: PCIe 4.0 x4 & SATA (2242/2260/2280)

• 4 × SATA 6Gb/s

• Supports Intel® RST RAID (0/1/5/10)

🔹 Network

• Intel® 1Gb Ethernet

• ASUS LANGuard Protection

🔹 Wireless

• M.2 Key-E Slot (CNVi & PCIe)

• Wi-Fi module sold separately

🔹 USB Ports

Rear (8 Ports):

• 1 × USB 3.2 Gen 2×2 Type-C

• 1 × USB 3.2 Gen 2 Type-A

• 4 × USB 3.2 Gen 1 Type-A

• 2 × USB 2.0

Front (7 Ports):

• 1 × USB 3.2 Gen 1 Type-C

• 2 × USB 3.2 Gen 1

• 4 × USB 2.0

🔹 Audio

• Realtek 7.1 Surround Sound HD Audio

• Up to 24-Bit / 192kHz

• Audio Shielding & Premium Capacitors

🔹 Back Panel I/O

• USB Ports (as listed above)

• DisplayPort

• HDMI™

• Intel® LAN

• 3 × Audio Jacks

🔹 Internal Connectors

• CPU Fan / CPU OPT / AIO Pump

• 3 × Chassis Fan Headers

• 24-pin ATX Power

• 8-pin + 4-pin CPU Power

• RGB & Addressable Gen 2 Headers

• Thunderbolt™ (USB4®) Header

• TPM Header

• Clear CMOS, COM Port, SPDIF, Front Panel Audio

🔹 Special Features

• ASUS 5X Protection III

• SafeSlot Core+

• Stainless-Steel I/O Shield

• ASUS Q-Design (Q-DIMM, Q-LED, Q-Slot)

• Aura Sync RGB

🔹 Software

• Armoury Crate

• AI Suite 3

• Fan Xpert 4 (AI Cooling II)

• ASUS CPU-Z

• Norton 360 (60 Days)

• WinRAR

🔹 BIOS

• 192Mb UEFI AMI BIOS

• EZ Flash 3

• CrashFree BIOS 3

🔹 Operating System

• Windows® 11

• Windows® 10 (64-bit)

🔹 Form Factor

• mATX

• 9.6 × 9.6 inches (24.4 × 24.4 cm)
